集中管理与实时审计：构建Linux集群（1300台服务器）日志平台的最佳实践
简介
随着企业IT基础设施的不断扩大，Linux服务器的数量也日益增多，传统的单机日志管理方式已无法满足对日志数据集中管理、审计和分析的需求。尤其是在大型集群环境中，如何高效地收集、存储和分析日志成为了一项重要的技术挑战。
背景
在实现对大型Linux集群的日志集中管理与审计，特别是针对rsyslog日志的收集、操作命令日志以及登录日志的审计。通过部署集中的rsyslog服务端，能够统一收集1300多台Linux服务器的系统日志，确保日志数据的集中化管理。使用Filebeat作为日志收集工具，将日志数据推送至Logstash进行清洗和转换，最终存储到Elasticsearch中，并通过Kibana实现实时数据可视化展示。这种方式不仅简化了日志管理流程，还提高了系统的监控效率和安全性。
需求
统一管理 1300 台服务器的Linux系统日志，能够及时发现问题和告警。
解决方案
- 集中管理：通过统一的服务端收集所有Linux服务器的日志数据，减少单独配置每台服务器的工作量。
- 日志审计：对操作命令日志、登录日志等进行审计，确保系统行为的可追溯性。
- 数据清洗与分析：通过日志清洗与格式转换，确保日志数据的标准化，便于后续的分析和可视化展示。
- 实时展示：利用Kibana将清洗后的数据实时可视化，帮助运维人员快速发现潜在问题。
整体架构
为实现这些目标，我们设计了以下的系统架构：
- rsyslog：作为日志收集的核心组件，它负责将来自Linux系统的各种日志（包括
/var/log/messages等）统一推送到中心化的日志服务端。 - Filebeat：作为轻量级的日志收集器，部署在各个Linux节点上，负责将日志文件传输到Logstash。
- Logstash：对收集到的日志进行清洗、解析和转换，确保数据符合预定格式，便于存入Elasticsearch。
- Elasticsearch：存储经过清洗和转换的日志数据，提供强大的全文搜索和数据查询功能。
- Kibana：通过Kibana仪表盘实时展示存储在Elasticsearch中的日志数据，帮助运维人员进行数据分析和可视化展示。
rsyslog汇总
rsyslog服务端
首先配置rsyslog服务器，可以统一收集集群内部的日志。
# 加载本地系统日志模块（例如通过 logger 命令发送的日志）
$ModLoad imuxsock
# 加载内核日志模块（之前由 rklogd 处理）
$ModLoad imklog
# 加载 UDP 模块，支持通过 UDP 协议接收日志
$ModLoad imudp
# 配置 UDP 服务器在 514 端口接收日志
$UDPServerRun 514
# 加载 TCP 模块，支持通过 TCP 协议接收日志
$ModLoad imtcp
# 配置 TCP 服务器在 514 端口接收日志
$InputTCPServerRun 514
# 定义一个自定义的日志格式模板 'myFormat'
$template myFormat,"%timestamp:::date-rfc3339% %fromhost-ip% %HOSTNAME% [%programname%] %syslogseverity-text%:%msg%
"
# 设置默认的文件格式为传统的 rsyslog 格式
$ActionFileDefaultTemplate RSYSLOG_TraditionalFileFormat
# 加载 /etc/rsyslog.d/ 目录下的所有配置文件
$IncludeConfig /etc/rsyslog.d/*.conf
# 配置收集 info 级别的日志，排除 mail、authpriv、cron 类别的日志，输出到 /var/log/messages 文件，并使用 myFormat 格式
*.info;mail.none;authpriv.none;cron.none /var/log/messages;myFormat
# 收集所有 authpriv 类别的日志（通常是认证相关的日志），输出到 /var/log/secure 文件，并使用 myFormat 格式
authpriv.* /var/log/secure;myFormat
# 收集所有 mail 类别的日志，输出到 /var/log/maillog 文件，使用异步写入（- 表示异步）
mail.* -/var/log/maillog
# 收集所有 cron 类别的日志（定时任务日志），输出到 /var/log/cron 文件
cron.* /var/log/cron
# 收集所有紧急级别（emerg）的日志，将其通过系统消息发送
*.emerg :omusrmsg:*
# 收集 uucp 和 news 类别的严重级别（crit）日志，输出到 /var/log/spooler 文件
uucp,news.crit /var/log/spooler
# 收集所有 local7 类别的日志，输出到 /var/log/boot.log 文件
local7.* /var/log/boot.log
重启服务端
systemctl restart rsyslog

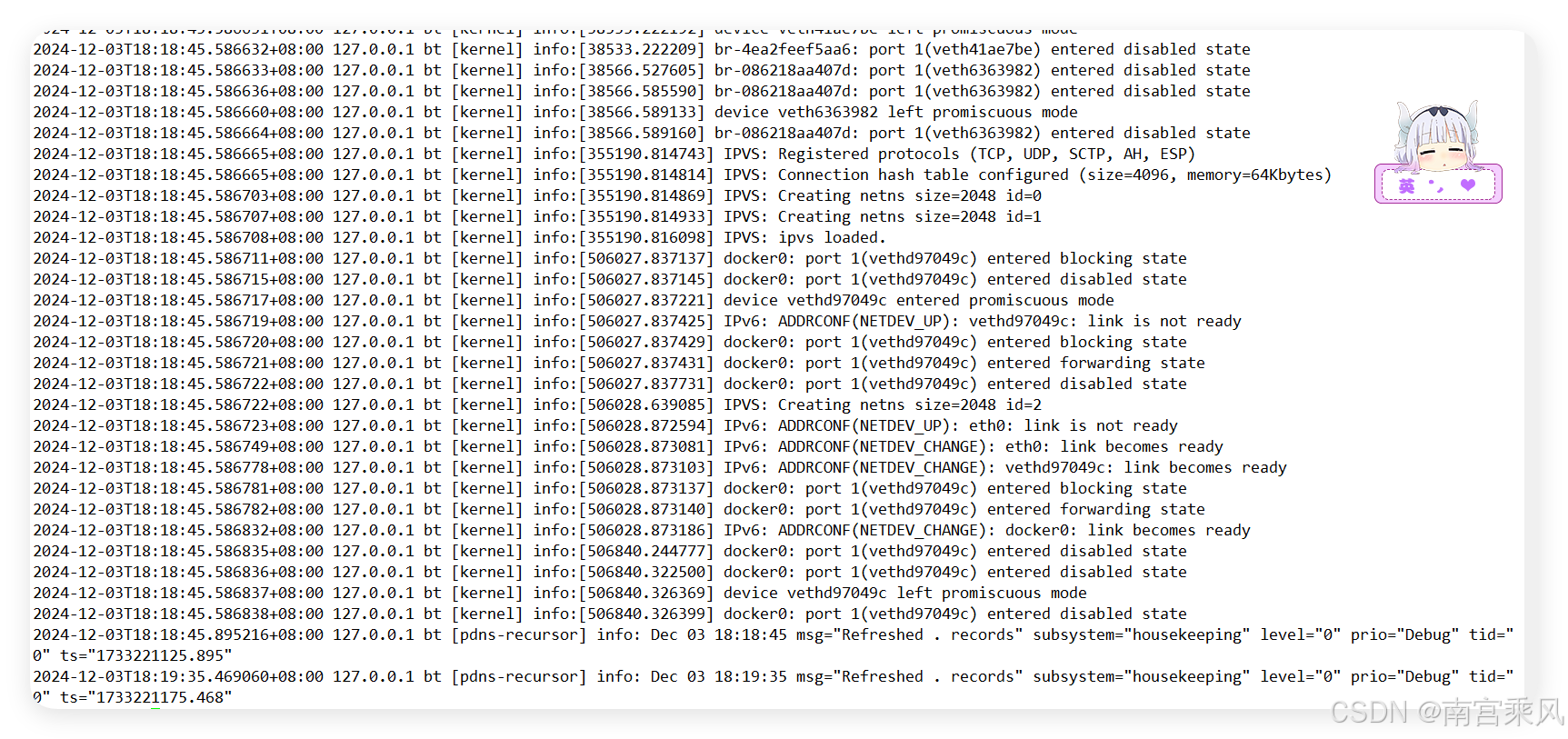

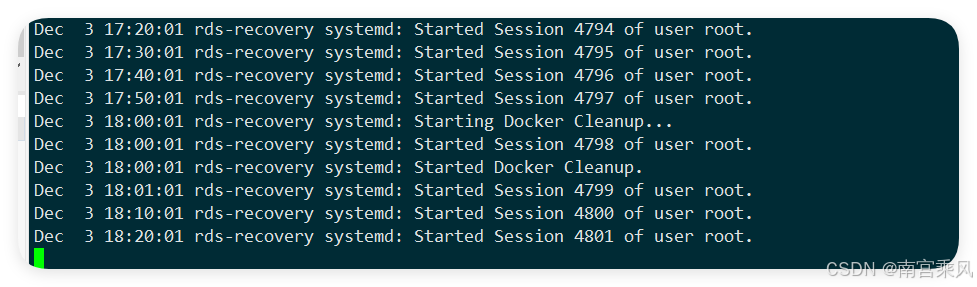

修改前：

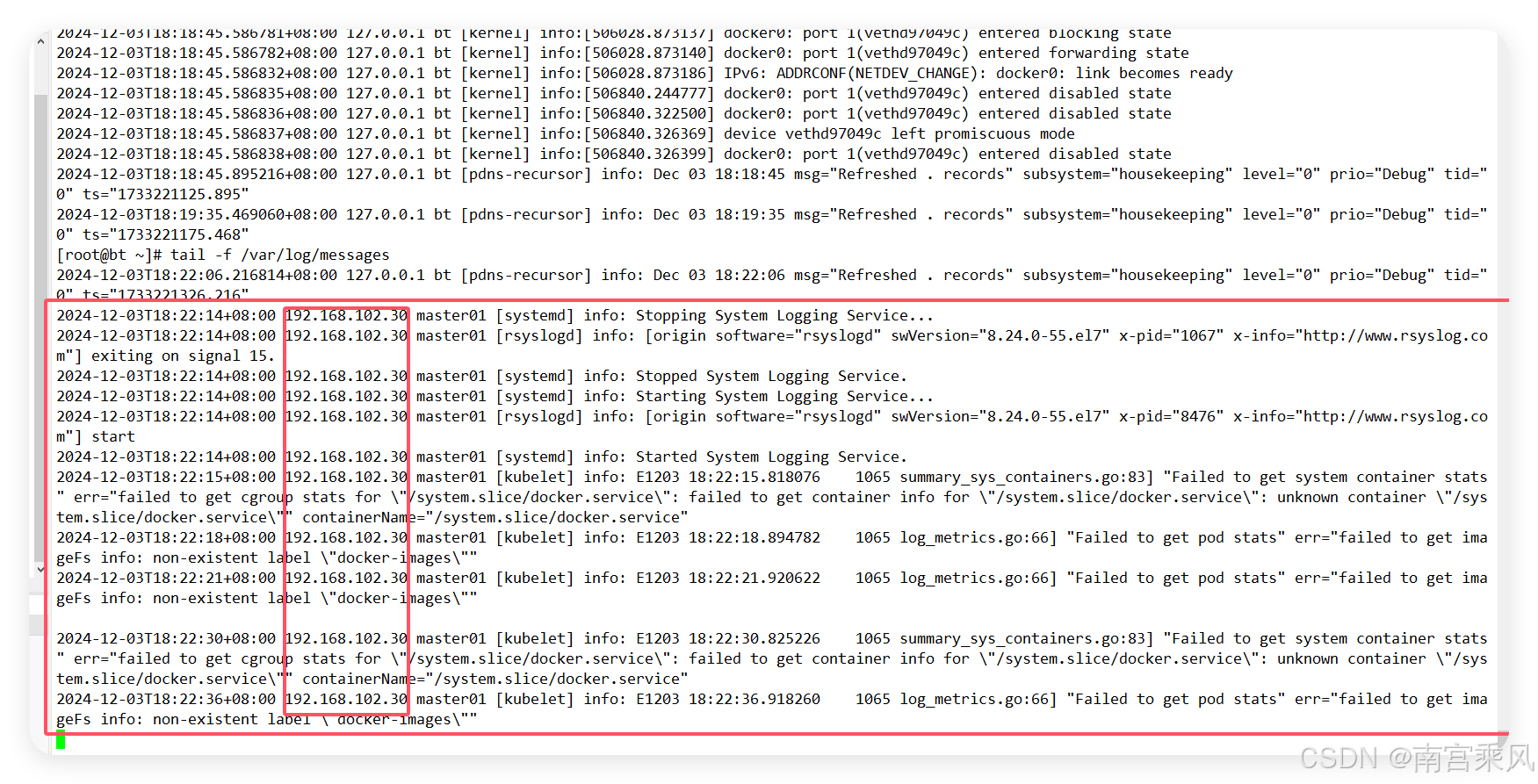

修改后：
rsyslog客户端
所有集群的客户端配置最后一行IP，就可以把数据汇总在一切
[root@zabbix ~]# cat /etc/rsyslog.conf |tail -n 2
#authpriv.* @10.10.10.17
*.* @@192.168.102.20 # rsyslog 服务端的IP
重启
systemctl restart rsyslog.service
日志已经打印到rsyslog 服务端的 /var/log/messages /var/log/secure 等文件
filebeaet收集
在rsyslog 服务端的安装filebeaet，并且使用如下配置启动
filebeat.config.modules:
path: ${path.config}/modules.d/*.yml
reload.enabled: false
filebeat.inputs:
- type: log
enabled: true
tail_files: true
paths:
- /var/log/messages
output.logstash:
hosts: ["192.168.1.100:5514"]
# 把日志发送到logstatsh中
logstatsh配置
[root@game logstash]# cat config/rsyslog.conf
input {
beats {
port => 5514
type => syslog
}
}
filter {
grok {
match => {
"message" => "%{TIMESTAMP_ISO8601:time} %{IP:client_ip} %{HOSTNAME:host_name} [%{DATA:type}] %{GREEDYDATA:info}"
}
overwrite => ["message"]
}
mutate {
split => ["type",","]
}
mutate{
add_field => {
"types" => "%{[type][1]}"
} }
mutate{remove_field => [ "tags","agent","host","log","ecs","type" ]}
date {
match => ["time", "yyyy-MM-dd HH:mm:ss,SSS", "UNIX"]
target => "@timestamp"
locale => "cn"
}
}
output {
stdout {
codec=> rubydebug
}
elasticsearch {
hosts => ["127.0.0.1:9200"]
index => "message"
}
}
数据格式
2024-12-03T18:35:30+08:00 192.168.102.30 master01 [kubelet] info: E1203 18:35:30.827608 1065 summary_sys_containers.go:83] "Failed to get system container stats" err="failed to get cgroup stats for "/system.slice/docker.service": failed to get container info for "/system.slice/docker.service": unknown container "/system.slice/docker.service"" containerName="/system.slice/docker.service"

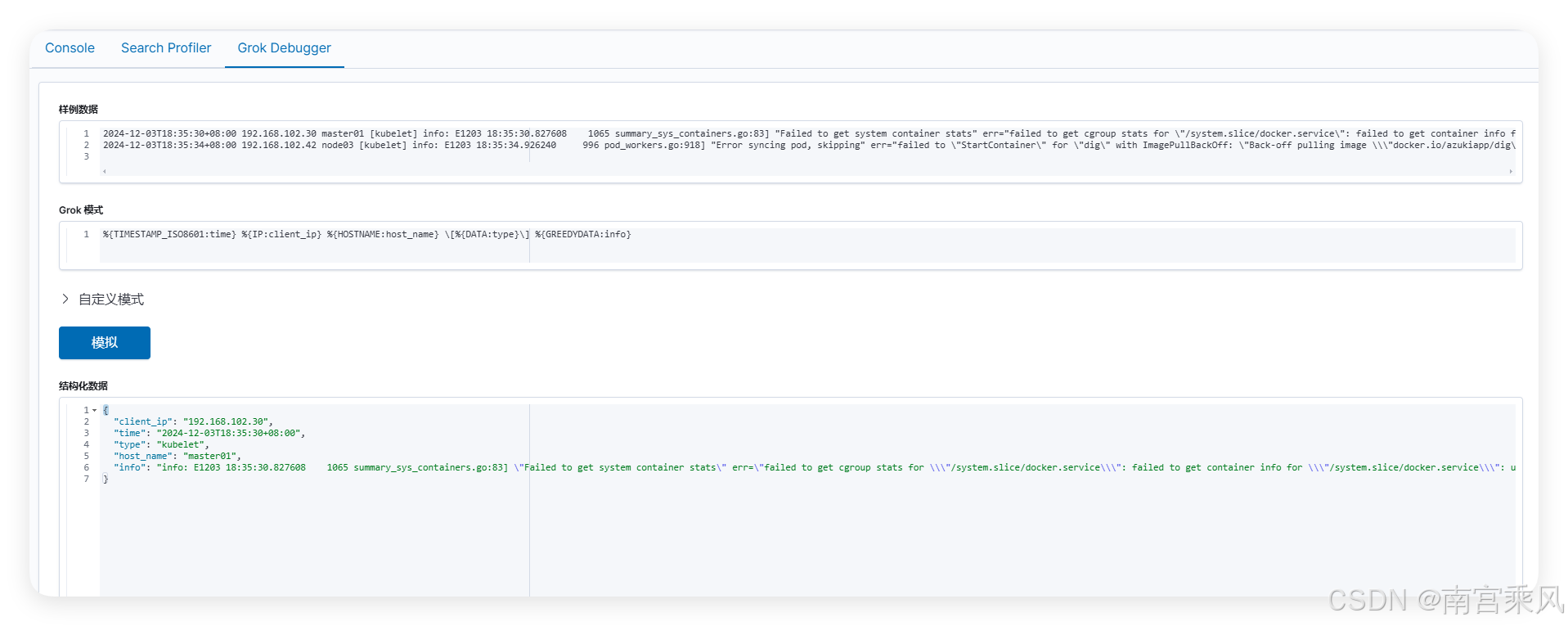

GROK解析
%{TIMESTAMP_ISO8601:time} %{IP:client_ip} %{HOSTNAME:host_name} [%{DATA:type}] %{GREEDYDATA:info}
输出格式
{
"client_ip": "192.168.102.30",
"time": "2024-12-03T18:35:30+08:00",
"type": "kubelet",
"host_name": "master01",
"info": "info: E1203 18:35:30.827608 1065 summary_sys_containers.go:83] "Failed to get system container stats" err="failed to get cgroup stats for "/system.slice/docker.service": failed to get container info for "/system.slice/docker.service": unknown container "/system.slice/docker.service"" containerName="/system.slice/docker.service"
"
}
操作系统命令审计
Linux一般都是终端执行命令，我们可以让命令写到message日志上，在通过过滤，获取操作命令记录。
Linux终端配置
[root@zabbix ~]# cat /etc/profile | tail -n 2
unset MAILCHECK
export PROMPT_COMMAND='{ msg=$(history 1 | { read x y; echo $y; });logger -p local2.info "euid=$(whoami)" $(who am i) `pwd` "$msg"; }'
日志格式
Oct 11 17:32:41 zabbix root: euid=root root pts/0 2021-10-11 15:13 (10.10.10.3) /root cat /etc/profile
Oct 11 17:32:47 zabbix root: euid=root root pts/0 2021-10-11 15:13 (10.10.10.3) /root cat /etc/profile | tail -n 2

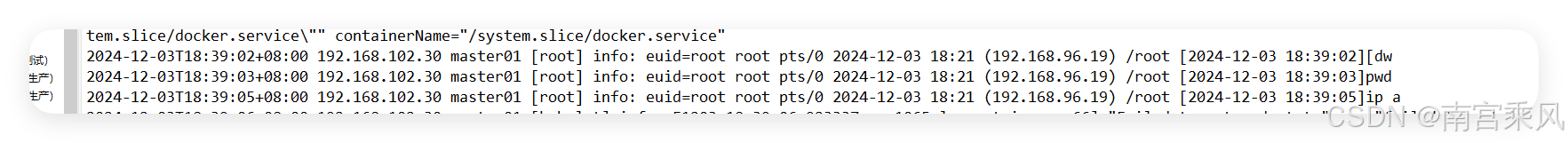

rsyslog服务端展示
filebeat配置
[root@logserver01 filebeat]# cat system_messages.yml
#=========================== Filebeat inputs =============================
filebeat.inputs:
- type: log
enabled: true
tail_files: true
paths:
- /var/log/messages
logstatsh配置
[root@logserver01 config]# cat system_userlog_FromKafkaInES.conf
input{
beats {
host => '172.17.9.200'
port => 5046
}
# kafka{
# bootstrap_servers => ["172.17.8.232:6667"]
# topics => ["sys_os_exe"]
# codec => "json"
# group_id => "ELK_SYSTEM_EXE_GROUP"
# consumer_threads => 3
# client_id => "logstash"
# decorate_events => false
# auto_offset_reset => "earliest"
# request_timeout_ms => "300000"
# session_timeout_ms => "20000"
# max_poll_interval_ms => "600000"
# }
}
filter{
if ([message] =~ "euid"){
grok{
match => {"message" => '^(?d+-d+-d+)(?:[^d]+)(?d+:d+:d+)(?:[^d]+d+:d+)(?:s)(?[^ ]+)(?:s)(?[^ ]+)(?:s[)(?[^ |]]*)(?:]s[^ ]+seuid=)(?[^ ]+)(?:s+)(?[^(]+)(?:s()(?[^)]+)(?:)s)(?[^ ]+)(s+)(?.*)' }
}
if "_grokparsefailure" in [tags] { drop { } }
mutate{
add_field => ["tmp_exeinfo","%{exeinfo}"]
}
mutate{
split => ["exetime","-"]
split => ["tmp_exeinfo"," "]
}
mutate{
add_field => ["indextime","%{[exetime][0]}%{[exetime][1]}"]
add_field => ["evtTime","%{[exetime][0]}-%{[exetime][1]}-%{[exetime][2]} %{hhmmss}"]
add_field => ["cmd","%{[tmp_exeinfo][0]}"]
}
#Retention log insertion time to ES..............
ruby { code => "event.set('inserttime', event.get('@timestamp').time.to_i)" }
#replace InsertTime with evtTime "yyyy-MM-dd HH:mm:ss eg:2020-06-29 09:24:29"
date{
match => ["evtTime","yyyy-MM-dd HH:mm:ss"]
#kibana use this time....................
target => "@timestamp"
}
mutate{replace => ["evtTime","%{evtTime} +0800"]}
date{
match => ["evtTime","yyyy-MM-dd HH:mm:ss +0800"]
timezone =>"UTC"
#log event time timestamp................
target => "logtimestamp"
}
#log event time long string......................
ruby { code => "event.set('longtime', event.get('logtimestamp').time.to_i)" }
mutate{remove_field => [ "tmp_exeinfo","evtTime","host","ecs","log","hhmmss","input","agent","exetime" ]}
}
else{
drop{}
}
}
output{
stdout{codec => rubydebug}
if [indextime] !~ "index"{
elasticsearch{
hosts => ["http://172.17.9.176:9200"]
#hosts => "172.17.9.176"
index => "sys_os_userlog_%{[indextime]}"
user => "*********"
password => "*********"
}
}
}
数据格式
2024-12-03T18:39:05+08:00 192.168.102.30 master01 [root] info: euid=root root pts/0 2024-12-03 18:21 (192.168.96.19) /root [2024-12-03 18:39:05]ip a

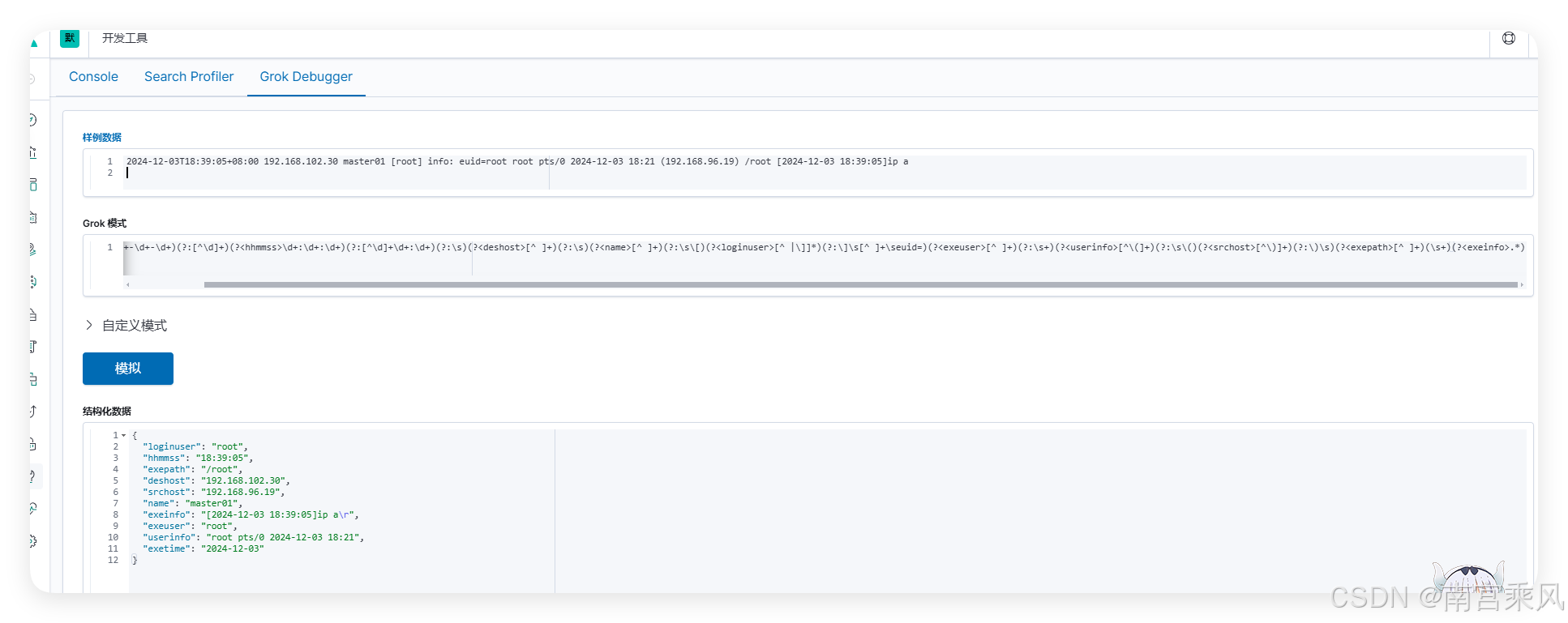

GROK解析
^(?<exetime>d+-d+-d+)(?:[^d]+)(?<hhmmss>d+:d+:d+)(?:[^d]+d+:d+)(?:s)(?<deshost>[^ ]+)(?:s)(?<name>[^ ]+)(?:s[)(?<loginuser>[^ |]]*)(?:]s[^ ]+seuid=)(?<exeuser>[^ ]+)(?:s+)(?<userinfo>[^(]+)(?:s()(?<srchost>[^)]+)(?:)s)(?<exepath>[^ ]+)(s+)(?<exeinfo>.*)
输出格式
{
"loginuser": "root",
"hhmmss": "18:39:05",
"exepath": "/root",
"deshost": "192.168.102.30",
"srchost": "192.168.96.19",
"name": "master01",
"exeinfo": "[2024-12-03 18:39:05]ip a
",
"exeuser": "root",
"userinfo": "root pts/0 2024-12-03 18:21",
"exetime": "2024-12-03"
}
系统用户登录审计
filebeat配置
[root@logserver01 filebeat]# cat system_secure.yml
#=========================== Filebeat inputs =============================
filebeat.inputs:
- type: log
enabled: true
tail_files: true
paths:
- /var/log/secure
#=========================== Filebeat outppp_id: messuts =============================
output.logstash:
hosts: ["172.17.9.200:5045"]
logstatsh配置
[root@logserver01 config]# cat system_login_FromKafkaInES.conf
input{
beats {
host => '172.17.9.200'
port => 5045
}
#
# kafka{
# bootstrap_servers => ["172.17.8.232:6667"]
# topics => ["sys_os_login"]
# codec => "json"
# group_id => "ELK_SYSTEM_LOGIN_GROUP"
# consumer_threads => 3
# client_id => "logstash"
# decorate_events => false
# auto_offset_reset => "earliest"
# request_timeout_ms => "300000"
# session_timeout_ms => "20000"
# max_poll_interval_ms => "600000"
# }
}
filter{
#login successed log
if ([message] =~ "Accepted"){
grok{
match => {"message" => '^(?d+-d+-d+)(?:[^d]+)(?d+:d+:d+)(?:[^d]+d+:d+)(?:s+)(?d+.d+.d+.d+)(?:s)(?[^ ]+)(?:[Ss]*Failedspasswordsfor[sinvalidsuser]*s)(?[^ ]+)(?:sfroms)(?[d.]+)(?:sw+sd+s)(?w*)' }
}
if "_grokparsefailure" in [tags] { drop { } }
mutate{
add_field => ["type","systemlogin"]
split => ["atime","-"]
}
mutate{
add_field => ["indextime","%{[atime][0]}%{[atime][1]}"]
add_field => ["evtTime","%{[atime][0]}-%{[atime][1]}-%{[atime][2]} %{hhmmss}"]
}
#Retention log insertion time to ES..............
ruby { code => "event.set('inserttime', event.get('@timestamp').time.to_i)" }
#replace InsertTime with evtTime "yyyy-MM-dd HH:mm:ss eg:2020-06-29 09:24:29"
date{
match => ["evtTime","yyyy-MM-dd HH:mm:ss"]
#kibana use this time....................
target => "@timestamp"
}
mutate{replace => ["evtTime","%{evtTime} +0800"]}
date{
match => ["evtTime","yyyy-MM-dd HH:mm:ss +0800"]
timezone =>"UTC"
#log event time timestamp................
target => "logtimestamp"
}
#log event time long string......................
ruby { code => "event.set('longtime', event.get('logtimestamp').time.to_i)" }
mutate{remove_field => [ "evtTime","host","ecs","log","hhmmss","input","agent","atime" ]}
}
#login failed log
else if ([message] =~ "Failed password for"){
grok{
match => {"message" => '^(?d+-d+-d+)(?:[^d]+)(?d+:d+:d+)(?:[^d]+d+:d+)(?:s+)(?d+.d+.d+.d+)(?:[Ss]*Failedspasswordsfor[sinvalidsuser]*s)(?[^ ]+)(?:sfroms)(?[d.]+)(?:sw+sd+s)(?w*)' }
}
if "_grokparsefailure" in [tags] { drop { } }
mutate{
add_field => ["type","systemloginfailed"]
split => ["atime","-"]
}
mutate{
add_field => ["indextime","%{[atime][0]}%{[atime][1]}"]
add_field => ["evtTime","%{[atime][0]}-%{[atime][1]}-%{[atime][2]} %{hhmmss}"]
}
#Retention log insertion time to ES..............
ruby { code => "event.set('inserttime', event.get('@timestamp').time.to_i)" }
#replace InsertTime with evtTime "yyyy-MM-dd HH:mm:ss eg:2020-06-29 09:24:29"
date{
match => ["evtTime","yyyy-MM-dd HH:mm:ss"]
#kibana use this time....................
target => "@timestamp"
}
mutate{replace => ["evtTime","%{evtTime} +0800"]}
date{
match => ["evtTime","yyyy-MM-dd HH:mm:ss +0800"]
timezone =>"UTC"
#log event time timestamp................
target => "logtimestamp"
}
#log event time long string......................
ruby { code => "event.set('longtime', event.get('logtimestamp').time.to_i)" }
mutate{remove_field => [ "evtTime","host","ecs","log","hhmmss","input","agent","atime" ]}
}
#other log
else{
drop{}
}
}
output{
if [type] == "systemlogin"{
if [indextime] !~ "index"{
stdout{codec => rubydebug}
elasticsearch{
hosts => "172.17.9.176"
index => "sys_os_systemlogin_%{[indextime]}"
user => "elastic"
password => "f5OPbv6sqfstmc+"
}
}
}
else if [type] == "systemloginfailed"{
if [indextime] !~ "index"{
stdout{codec => rubydebug}
elasticsearch{
hosts => "172.17.9.176"
index => "sys_os_systemloginfailed_%{[indextime]}"
user => "elastic"
password => "xxxxxxx+"
}
}
}
}
成功日志解析
日志格式
2024-12-03T18:45:09+08:00 192.168.102.42 node03 [sshd] info: Accepted password for root from 192.168.96.19 port 14347 ssh2

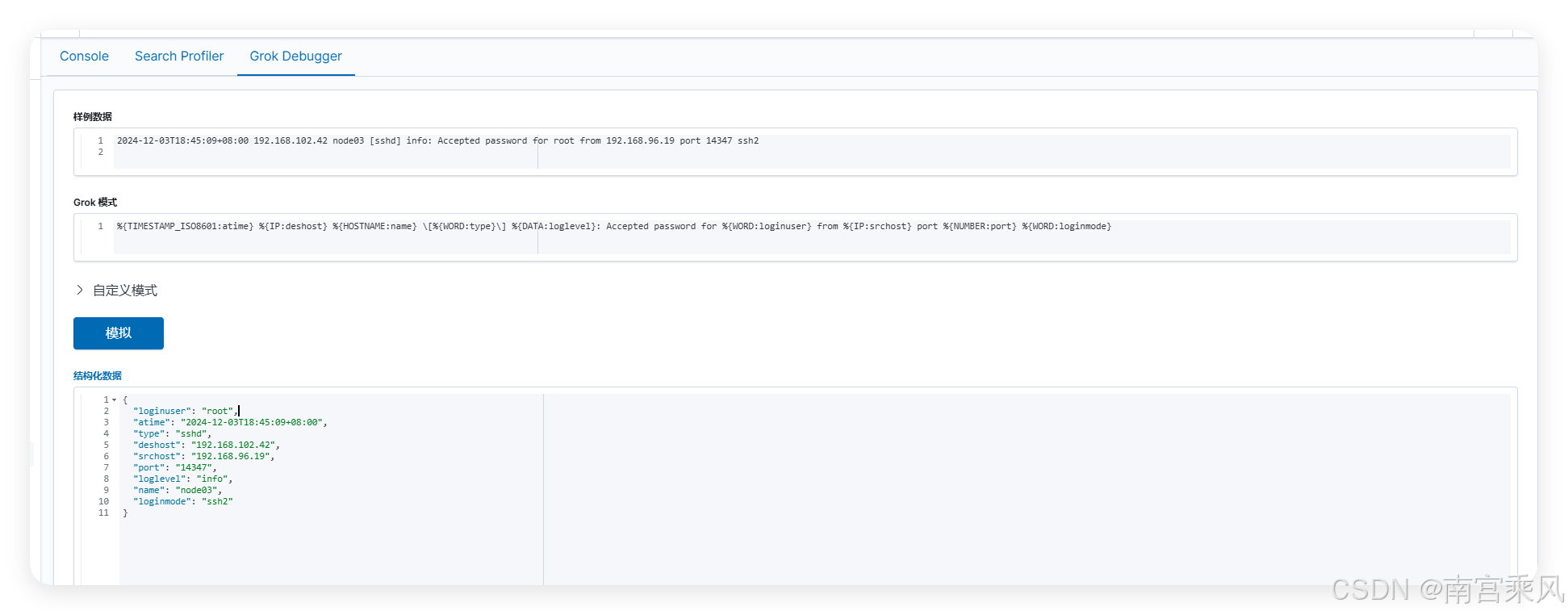

GROK语法
%{TIMESTAMP_ISO8601:atime} %{IP:deshost} %{HOSTNAME:name} [%{WORD:type}] %{DATA:loglevel}: Accepted password for %{WORD:loginuser} from %{IP:srchost} port %{NUMBER:port} %{WORD:loginmode}
日志格式
{
"loginuser": "root",
"atime": "2024-12-03T18:45:09+08:00",
"type": "sshd",
"deshost": "192.168.102.42",
"srchost": "192.168.96.19",
"port": "14347",
"loglevel": "info",
"name": "node03",
"loginmode": "ssh2"
}
失败日志格式
日志格式
2024-12-03T19:01:57+08:00 192.168.102.42 node03 [sshd] info: Failed password for invalid user 123 from 192.168.96.19 port 12103 ssh2

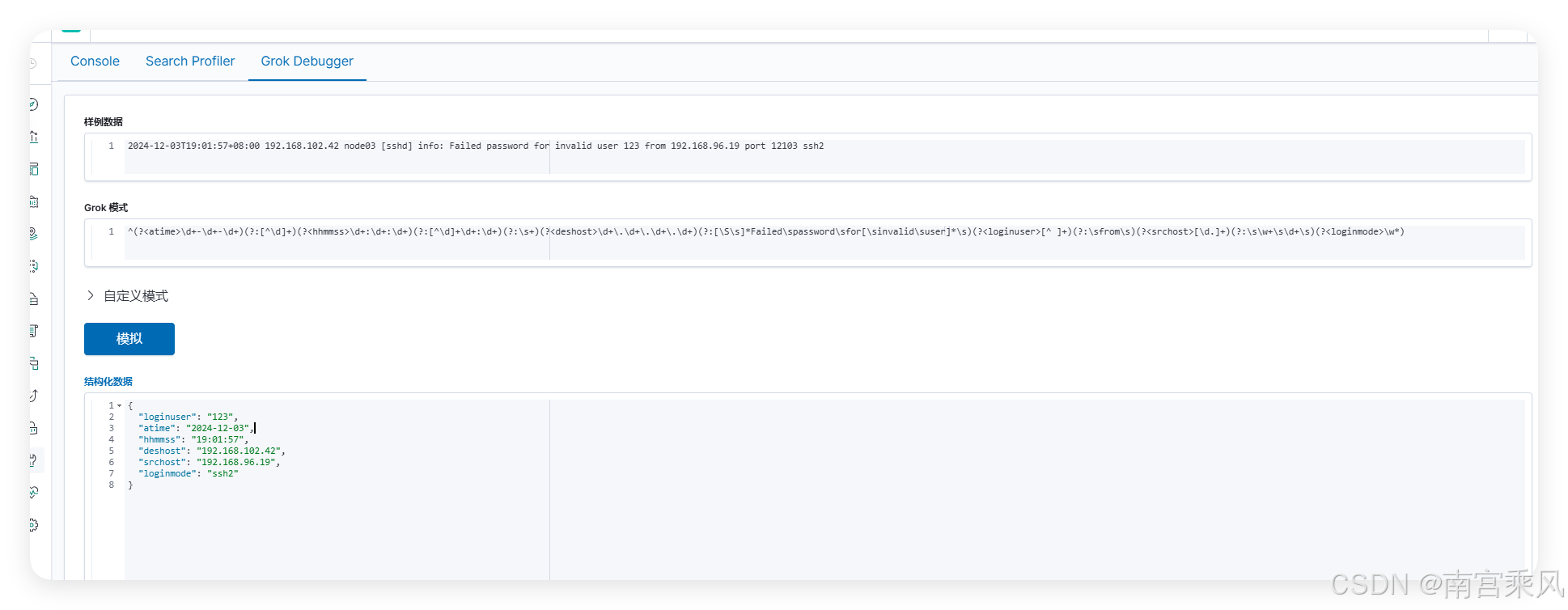

GROK语法
^(?<atime>d+-d+-d+)(?:[^d]+)(?<hhmmss>d+:d+:d+)(?:[^d]+d+:d+)(?:s+)(?<deshost>d+.d+.d+.d+)(?:[Ss]*Failedspasswordsfor[sinvalidsuser]*s)(?<loginuser>[^ ]+)(?:sfroms)(?<srchost>[d.]+)(?:sw+sd+s)(?<loginmode>w*)
日志输出
{
"loginuser": "123",
"atime": "2024-12-03",
"hhmmss": "19:01:57",
"deshost": "192.168.102.42",
"srchost": "192.168.96.19",
"loginmode": "ssh2"
}
